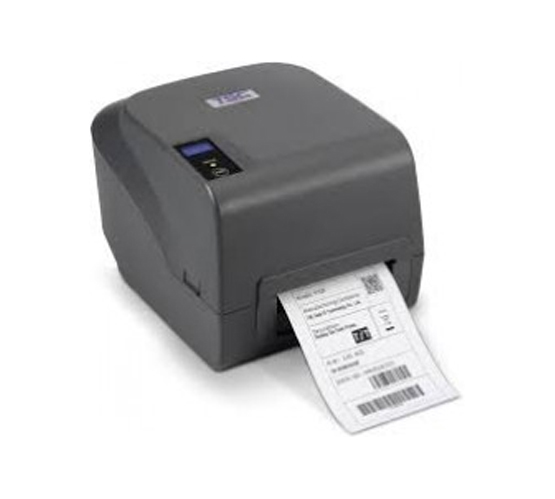

TSC P200 Desktop Thermal Transfer Bar Code Printer Single Function Printer is a single function printer from Tsc and it uses thermal transfer technology for best results in printing. TSC P200 Desktop Thermal Transfer Bar Code Printer Single Function Printer can only perform one function that is print and is hence a single function device.
Health Care
Garment / textile
logistics / courier
E-Commerce
Retail
| MODEL NO. | P 200 |
|---|---|
| Printing Method | Thermal Transfer & Direct Thermal |
| Printer Language | TSPL-EZTM (Compatible to EPL, ZPL, ZPL II) |
| Ethernet (Standard) | Yes |
| Print Width | 108 mm (4.25”) |
| Resolution | 8 dots/mm (203 DPI) |
| Print Speed (ips) | 127 mm (5”)/second |
| Media Type | Continuous, die-cut, black mark, fan-fold, notched & Tag stock |
| Media Width | 25.4 ~ 118 mm |
| Media Core Diameter | 25.4 ~ 38 mm |
| Label Roll Capacity | 127 mm (5“) OD |
| Ribbon Capacity | 300 m long, max. OD 67 mm, 1“ core |
| Wifi | Optional accessory |
| Bluetooth | Optional accessory |
| Enclosure | ABS plastic |
| Weight | 2.45 kg |
|---|---|
| Processor | 32-bit RISC CPU |
| Display | Factory Option |
| Memory | • 4 MB Flash memory • 8 MB SDRAM • MicroSD card reader for Flash memory expansion, up to 4 GB |
| Interface | • USB 2.0 • RS-232 (Optional) • Centronics (Optional) • Internal Ethernet, 10/100 Mbps |
| Sensor | • Transmissive gap sensor (position adjustable) • Black mark reflective sensor (position adjustable) • Ribbon end sensor • Head open sensor |
| Power | External universal switching power supply • Input: AC 100-240V, 1.8A, 50-60Hz • Output: DC 24V, 2.5A, 60W |
| Button | 1 power switch, 1 feed button 1 LED (3 colors: green, amber & red) |
| Motor | Dual-motor gear driven design |
| Operation Environment | Comply with RoHS, WEEE |
