TSC DA 200 220

Description

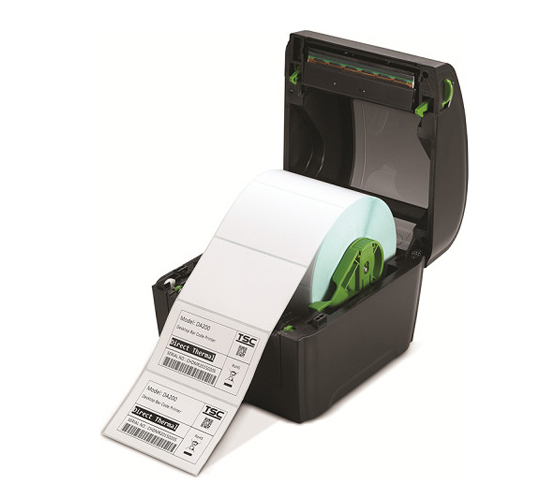

The DA200/DA220 Series of direct thermal desktop printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labeling and tag applications at a very competitive price.

The DA200/DA220 Series is a perfect combination of affordability with a durable and reliable design. The DA200 series offers both 203 and 300 dots per inch print resolution with printing speeds up to a fast 6 inches per second. The large 60 watt power supply produces high quality printed labels, even at its fastest print speeds.

The DA220 and DA320 models have more memory and support every communications option you could need including Serial RS-232, Ethernet, USB host, internal 802.11 a/b/g/n wireless, or internal Bluetooth.

icon image of Logistics / Courier

LOGISTICES / CORIUR

icon image of Retails / Organise Retail

retails / organise retail

icon image of Retails

E-commerces

  • High quality double-walled clamshell design
  • 6 inches per second print speed
  • 64 MB SDRAM and 128 MB Flash memory (DA220/DA320)
  • Easy media loading
  • USB 2.0 (High speed mode)
  • TSPL-EZ firmware emulates Eltron® and Zebra® languages out of the box
  • Bluetooth 4.0
  • 802.11 a/b/g/n (DA220/DA320)
  • ENERGY STAR® qualified
MODEL NO. DA 220
Printing Method Direct Thermal
Printer Language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Ethernet (Standard) Yes
Print Width 108 mm (4.25”)
Resolution 8 dots/mm (203 DPI)
Print Speed (ips) 152.4 mm (6”)/second
Media Type Continuous, black mark, fan-fold, notched
Media Width 19 ~ 114 mm
Media Core Diameter 25.4 ~ 38 mm
Label Roll Capacity 127 mm (5“) OD
Ribbon Capacity N.A
Wifi Factory Optional
Bluetooth Factory Optional
Enclosure Double-walled plastic
Weight 1.5 kg
Processor 32-bit RISC CPU
Display N.A
Memory • 128 MB Flash memory
• 64 MB DRAM
Interface • USB 2.0
• RS-232
• Internal Ethernet, 10/100 Mbps
• USB Host
Sensor • Transmissive gap sensor
• Black mark reflective sensor
• Head open sensor
Power External universal switching power supply
• Input: AC 100-240V, 50-60Hz
• Output: DC 24V, 2.5A, 60W
Button 1 power switch, 1 feed button 1 LED (3 colors: green, amber & red)
Motor --
Operation Environment Comply with RoHS, WEEE
Suitable for following applications
  • Small Parcel Shipping
  • Mail Room Address and Routing Labels
  • Shipping & Receiving
  • Entertainment and Transportation Ticketing
  • Retail Point-of-Sale
  • File-Folder Labeling
