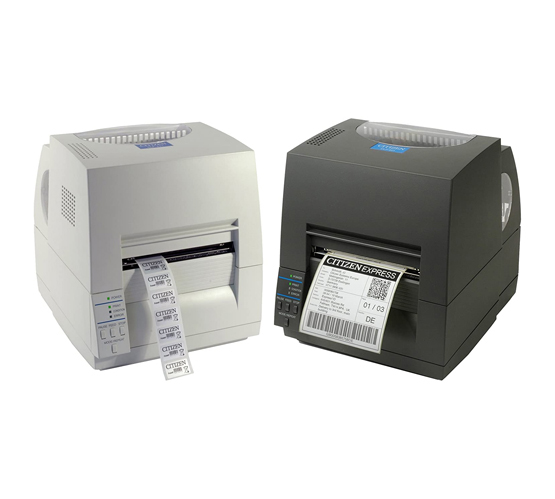

CITIZEN CLS 612 / 631

Description

The Citizen CL-S631 provides users with unparalleled features in the desktop thermal printer class. With crisp 300 dpi printing for images or fine text and an unprecedented 360-meter ribbon for greater productivity and reduced downtime the CL-S631 is a high-performance printer built for the desktop environment. Citizen's unique metal Hi-Lift mechanism allows easy access for loading of media and/or ribbons and the adjustable media sensor can handle a wide variety of label configurations including standard and pediatric medical wristbands. The powerful on-board 32 Bit RISC processor delivers exceptional throughput and fast first label out. The CL-S631 comes standard with internal serial and USB interfaces. Optional Ethernet, Wi-Fi, and Parallel interfaces are also available. Two year warranty.

icon image of Helthcare

HEALTH CARE

icon image of Garment / Textile

GARMENT / TEXTILE

icon image of Logistics / Courier

LOGISTICES / CORIUR

icon image of Retails

E-commerces

icon image of Garment / Textile

retails / organise retail

  • Powerful 32 Bit RISC processer
  • 300 dpi printing for images or fine text
  • Thermal transfer or direct thermal printing
  • 360-meter ribbon capacity for fewer ribbon changes
  • Standard and pediatric medical wristband capable
  • Metal Hi-Lift™ print mechanism for easy ribbon and media loading
  • Auto-Sensing Zebra® and Datamax® emulations
  • Internal power supply
  • Internal 125mm (5-inch) media capacity
  • Standard serial and USB interfaces
  • Parallel, Ethernet and wireless LAN networking options
  • Ships with Windows™ XP, Vista and 7 drivers
  • Label design software included
MODEL NO. CLS 631
Printing Method Thermal Transfer & Direct Thermal
Printer Language Cross-Emulation™,Datamax® I-Class®, DMX400 Zebra® ZPL-II® & Citizen Original Commands
Ethernet (Standard) No
Print Width 104 mm(4.09")
Resolution 8 dots/mm (203 DPI)
Print Speed (ips) 102 mm (4”)/second
Media Type Continuous, black mark, fan-fold, notched
Media Width 12.5 to 118 mm
Media Core Diameter 25.4mm
Label Roll Capacity 127 mm (5“) OD
Ribbon Capacity 360 m long, max. OD 74mm, 1" core
Wifi Factory Optional
Bluetooth Factory Optional
Enclosure Hi-Lift™ metal mechanism with wide opening head
Weight 4.5 Kg
Processor No Info
Display N.A
Memory 4 MB total, 1 MB available for user
Interface • USB 2.0
• RS-232
Sensor • Gap sensor
• Reflective senson
Power No Info
Button 4 buttons and 4 LEDs
Motor Triple Motor
Operation Environment No Info
