TSC ALPHA - 4L

Description

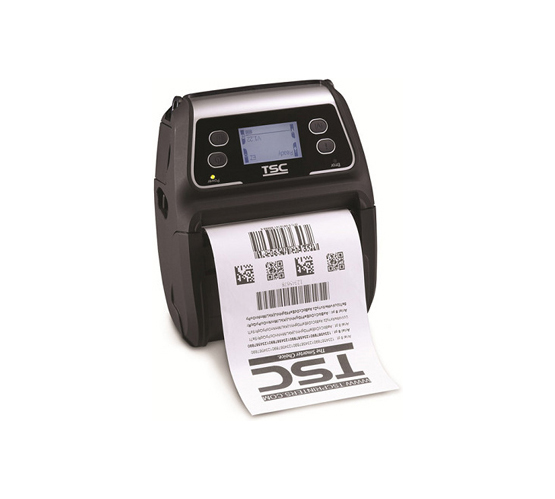

The TSC Alpha-4L 4-inch (102 mm) direct thermal portable label printer features a rugged design and reliable performance that will continue to operate long after other printers have failed. As with all TSC built printers, we back up our claims with our standard two-year warranty. The Alpha-4L is a comfortable, light-weight printer capable of working with any mobile label, document or receipt printing application where you need labels printed wherever you are. TSC's Alpha-4L is designed for the tough life of the road, warehouse or retail location. With its optional case, the printer is IP54-rated o resist dust and water and endures to a 6 foot fall and keeps printing.

e-commerces

logistics / courier

Warehousing

IP54-rated protective case to resist dust and water
Plastic design with rubber over-mold construction that withstands 1.5 m (5 ft) drop and endure 1.8 m (6 ft) drop with its protective case
Ready for EPL, ZPL, or CPCL environments, TSC Droid APP & SDK. WinCE APP & SDK, iOS SDK
Wired & wireless communication interfaces: USB 2.0, RS-232, Bluetooth, and 802.11 a/b/g/n

High capacity 5800 mAh rechargeable Li-ion batteries
Large paper capacity to reduce the frequency of changing paper roll
Linerless ready
High-speed processor and extensive memory for fast print speeds of up to 102 mm (4") per second
2-Year Warranty is best in the industry

MODEL NO.	Alpha-4L
Printing Method	Direct Thermal
Printer Language	TSPL-EZ (Compatible to EPL, ZPL, ZPL II), ESC-POS or CPCL emulation
Print Width	104 mm (4.09”)
Resolution	8 dots/mm (203 DPI)
Print Speed (ips)	102 mm (4”)/second
Media Type	Receipt paper, receipt paper with black mark in printing side & selected label
Media Width	50.8 ~ 112 mm
Media Core Diameter	12.5mm (1/2")
Label Roll Capacity	67.3 mm (2.65”) OD
Ribbon Capacity	N.A
Wifi	OPTIONAL
Bluetooth	Bluetooth 2.0
Drop specification	1.5 m/5 ft
IP rating	IP54 (w/case)
Enclosure	Plastic with rubber over-mold construction

Physical dimension	6.30” (W) x 7.54” (H) x 3.11” (D)
Weight	1.1 kg
Processor	32-bit RISC CPU
Display	Optional 2” LCD display
Memory	• 16 MB Flash memory • 32 MB SDRAM • MicroSD card reader for Flash memory expansion, up to 4 GB
Interface	• USB 2.0 • Bluetooth • 802.11 a/b/g/n Wireless (factory option)
Sensor	• Black mark reflective sensor • Transmissive gap sensor • Peel sensor • Head open sensor
Power	7.2V DC, 5800 mAh Li-ion rechargeable battery
Button	• 2 buttons • 6 LED indicators
Environment condition	Operation: -10 ~ 50 °C (14 ~ 122 °F) Storage : -40 ~ 60 °C (-40 ~ 140 °F)
Motor	Single Motor
Operation Environment	Comply with RoHS, WEEE
