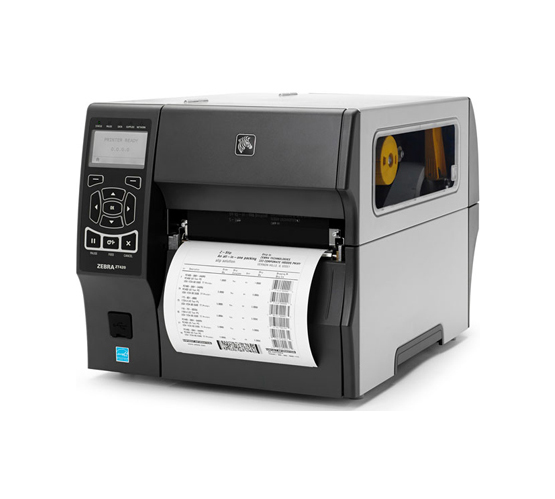

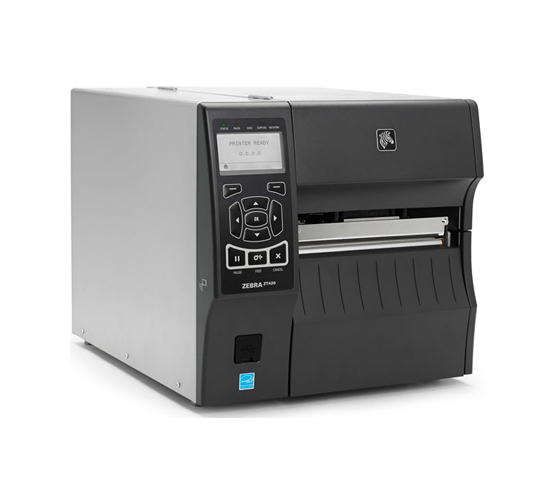

ZEBRA ZT 420 / 421

Description

The ZT420 Series printers are rugged and loaded with a standard set of advanced features allowing for use in the widest array of Manufacturing, Transportation and Logistics, Health care and Retail applications. Building on the Z Series' reliability with advancements in print speed, connectivity options, management and support tools, the ZT420 can be integrated into a wide range of environments.

chemicals industries

Industrial manufacturing

logistics / courier

Consumer durables

MODEL NO.	ZT 421
Printing Method	Thermal Transfer & Direct Thermal
Printer Language	ZPL, ZPL II® & EPL™
Ethernet (Standard)	Yes
Print Width	6.6 in. / 168 mm
Resolution	8 dots/mm (203 DPI)
Print Speed (ips)	305 mm (12”)
Media Type	Continuous, die-cut, notch, black-mark
Media Width	51 mm - 178 mm
Media Core Diameter	76.2 mm (3“)
Label Roll Capacity	208.3 mm (8.2“) OD
Ribbon Capacity	450 meter long, max. OD 81 mm, 1“ core
Wifi	Factory Optional
Bluetooth	Factory Optional
Enclosure	Metal media cover with enlarged clear window for easy-to-view supplies

Weight	18.14 kg
Processor	ARM Cortex A7 Processer
Display	4.3-inch color touch display
Memory	• 512 MB Flash memory • 256 MB SDRAM
Interface	• RS-232 • USB 2.0 • Internal Ethernet, • USB host x 2
Sensor	• Transmissive Sensor • Reflective Sensor
Power	Internal qualified auto-detectable 100-240VAC, 50-60 Hz, 100 W Power Supply
Button	3 operation buttons
Motor	Dual-motor
Operation Environment	No Info
